What Components Make up a Fire Door Assembly?
2025-11-10
A Fire Door plays a crucial role in building safety by preventing the spread of fire and smoke, allowing occupants to evacuate safely. Understanding what components make up a fire door assembly is essential for architects, contractors, and property managers to ensure compliance with fire safety standards. At Gaomi Haizhu Door Industry Co., Ltd., our factory specializes in producing certified fire door systems designed to meet strict international regulations while maintaining aesthetics and durability.
1. The Importance of a Complete Fire Door Assembly
A fire door assembly is not just a single door leaf—it is a complete system engineered to perform under extreme conditions. Each element, from the frame to the seals, contributes to the overall fire resistance rating. Our Fire Door products undergo rigorous testing to ensure they perform reliably during fire emergencies. Gaomi Haizhu Door Industry Co., Ltd. integrates advanced materials and precision manufacturing techniques to deliver consistent quality in every assembly.
2. Major Components of a Fire Door Assembly
Every Fire Door assembly comprises several critical parts working together to resist heat, block flames, and limit smoke passage. Below is a detailed breakdown of the main components used in our production lines.
| Component | Description | Function | Material Specification |
| Door Leaf | The main panel forming the barrier against fire. | Resists heat and flame penetration for a specific duration (30, 60, 90 minutes). | Steel, galvanized sheet, or fire-rated wood composite. |
| Door Frame | Provides structural support and alignment for the door leaf. | Ensures proper sealing and maintains fire resistance integrity. | Cold-rolled steel, stainless steel, or fire-resistant hardwood. |
| Intumescent Seals | Heat-activated strips expanding when exposed to fire. | Prevents the spread of smoke and flames through gaps. | Graphite-based or sodium silicate compound. |
| Hinges | Connects the door leaf to the frame. | Allows smooth operation and stability during high temperatures. | Stainless steel, fire-rated hinge system. |
| Lockset and Latch | Provides security and closure function. | Ensures the door remains latched under fire conditions. | Fire-rated metal alloy, tested under heat exposure. |
| Door Closer | Automatically closes the door after use. | Maintains compartmentalization during a fire outbreak. | Adjustable hydraulic closer, fire-rated body. |
| Vision Panel (Optional) | Glass panel within the door leaf. | Provides visibility while maintaining fire resistance. | Fire-rated wired glass or ceramic glazing. |
| Smoke Seals | Flexible gaskets around the door edges. | Restricts smoke leakage at normal temperatures. | Silicone or EPDM rubber. |
| Threshold and Drop Seal | Bottom sealing component. | Prevents smoke or flame ingress under the door. | Aluminum with intumescent insert. |
| Identification Label | Permanent marking indicating certification. | Provides traceability and ensures compliance with standards. | Stamped metal or fire-resistant label plate. |
Our factory ensures that all these components are integrated with precision and tested as a unified system. At Gaomi Haizhu Door Industry Co., Ltd., our engineers validate each part for both mechanical performance and fire endurance to deliver reliable Fire Door assemblies to global markets.
3. Fire Door Ratings and Performance Standards
Each Fire Door is classified based on the duration it can withstand fire exposure—commonly 30, 60, 90, or 120 minutes. These ratings are determined by laboratory tests under standardized conditions. Our products comply with international codes such as BS 476, EN 1634, and UL 10C. Gaomi Haizhu Door Industry Co., Ltd. maintains full traceability of materials, ensuring that our assemblies meet both domestic and international safety requirements.

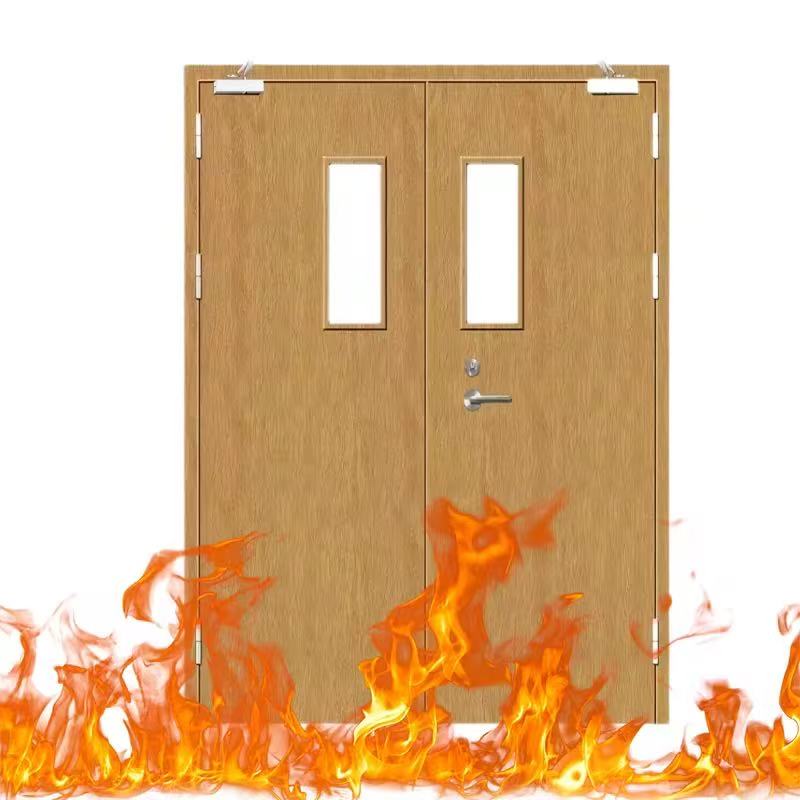

To meet the needs of various environments, our factory manufactures both single-leaf and double-leaf fire door systems, available in steel and wooden options. Each assembly includes all necessary hardware, enabling easy installation and long-term stability.
4. Product Specifications Overview
Below is a summary of the standard specifications of our fire door assemblies produced by Gaomi Haizhu Door Industry Co., Ltd..
| Model | Material | Fire Rating | Core Type | Surface Finish | Available Sizes |
| HZ-FD30 | Steel | 30 minutes | Honeycomb or mineral core | Powder coating or galvanized | Up to 1200mm × 2100mm |
| HZ-FD60 | Stainless Steel | 60 minutes | Rock wool core | Epoxy paint or brushed finish | Up to 1500mm × 2400mm |
| HZ-FD90 | Wood Composite | 90 minutes | Solid core with intumescent lining | Laminate or veneer finish | Customizable dimensions |
| HZ-FD120 | Galvanized Steel | 120 minutes | Insulated mineral board | High-durability paint | As per client requirement |
Our Fire Door assemblies are delivered with full test certificates, hardware compatibility documentation, and installation manuals. The factory’s automated production line ensures consistent quality and timely delivery for all project scales.
5. Installation and Maintenance Tips
Proper installation is vital to preserve the performance of a Fire Door. Always ensure the frame and door leaf are installed as a matched set and that intumescent seals are unbroken. After installation, periodic inspections should be conducted to check for damage, seal integrity, and alignment. Our team at Gaomi Haizhu Door Industry Co., Ltd. provides detailed technical guidance and post-sale maintenance advice for contractors and building owners.
FAQs About “What Components Make up a Fire Door Assembly?”
Q1: Why is it important to use certified components in a Fire Door assembly?
A1: Certified components ensure that the entire door system performs as tested under fire conditions. Substituting uncertified parts can compromise the fire resistance rating. Our factory uses only verified materials from trusted suppliers to maintain compliance and reliability.
Q2: How often should a Fire Door assembly be inspected?
A2: Fire Door assemblies should be inspected at least once every six months, or more frequently in high-traffic buildings. Regular checks guarantee that seals, hinges, and closers function correctly. At Gaomi Haizhu Door Industry Co., Ltd., we provide guidance for maintaining consistent safety performance.
Q3: Can Fire Doors be customized for design or branding?
A3: Yes, customization is available. While maintaining fire performance, our factory offers various colors, finishes, and vision panels to match architectural aesthetics. Every customized Fire Door still undergoes complete certification testing before shipment.
Conclusion
Understanding What Components Make up a Fire Door Assembly? is essential for ensuring building safety and compliance. Each element—from hinges to seals—contributes to the door’s performance in emergencies. Gaomi Haizhu Door Industry Co., Ltd. delivers reliable, tested, and certified Fire Door assemblies that combine safety, functionality, and style. With decades of experience and a commitment to innovation, our factory continues to support global clients with advanced fire protection solutions built to last.
