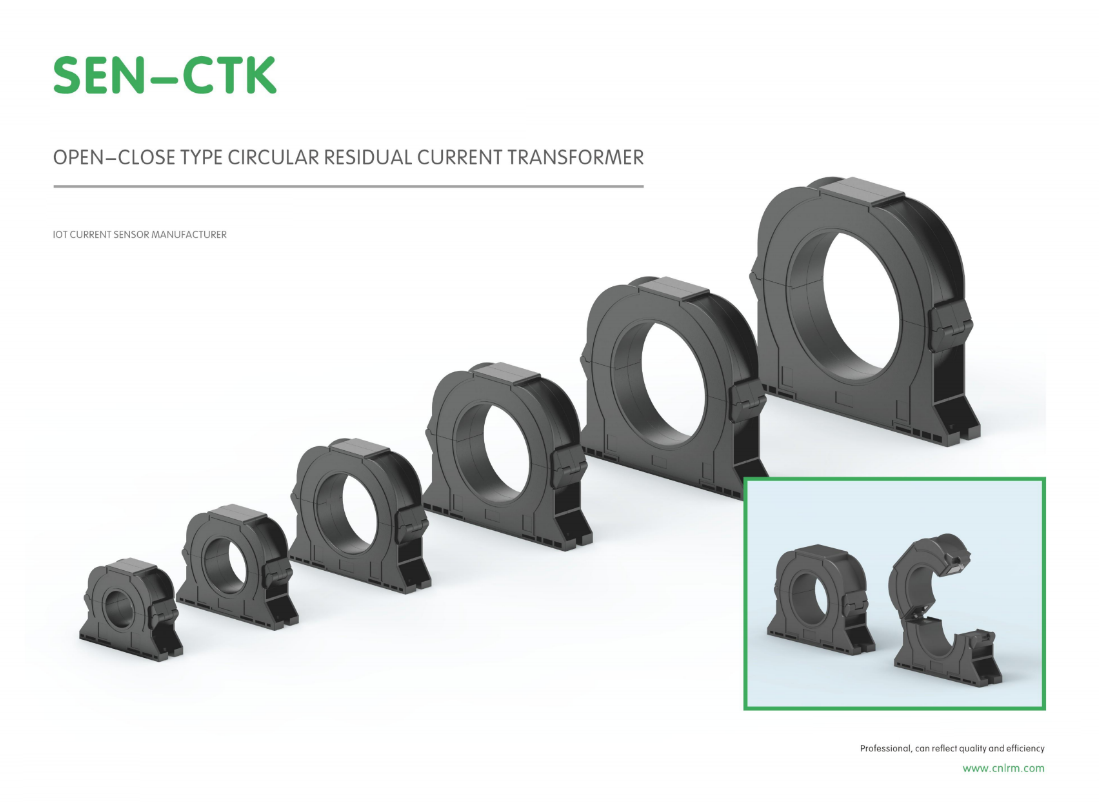

Best Split-Core Residual Current Transformers for Precision Leakage Current Measurement

Most leakage current faults stay invisible until a breaker trips—or worse, until someone gets hurt. Split-core residual current transformers are meant to catch those tiny currents early, but not all of them deliver the precision needed for reliable monitoring. This post cuts through the noise to explore what makes the best split-core RCMs stand out, including a closer look at Xiasen and the design choices that keep their measurements accurate without interrupting live circuits.

When Milliamps Matter: Choosing the Right Split-Core RCT

Sizing a split-core current transformer for low-level signals isn't just about the turns ratio on the datasheet. At milliampere ranges, the core material's permeability curve starts to bend in ways that throw off your expected linearity. Cheap units built around grain-oriented silicon steel look fine at 5 A secondary, but down near 20 mA they can introduce a phase shift that quietly corrupts power factor readings. If you're monitoring a small pump or a control circuit, you need to look past the headline accuracy spec and ask how the transformer behaves at 1% of its rated primary current.

The mechanical fit also matters more than you'd think at these signal levels. A split-core design with even a tiny air gap from misaligned faces or a loose latch will leak flux and turn a milliampere reading into a guess. The better units use a precision-ground mating surface and a spring-loaded closure that maintains consistent contact pressure over thousands of open-close cycles. Before you install one, open and close the core a few times while watching the output on a scope—if the baseline drifts or spikes, that's your error source, not the wiring.

Finally, don't ignore the burden resistor interaction. Many split-core RCTs rated for small currents are expected to work into a specific load, and swapping in a different meter input impedance can push the output out of spec. For milliampere-scale work, pick a transformer with a low secondary inductance and a stated accuracy at your exact burden, or spend a few minutes verifying the transfer curve with a known current source. The difference between a good fit and a near miss is often visible in the last digit of your energy audit.

Core Materials and Their Quiet Influence on Measurement Accuracy

Few designers talk about the metrology frame until a temperature swing of three degrees costs them a micron. The quiet role of core materials shows up in dimensional stability: a steel gantry expands roughly twelve parts per million per kelvin, while an Invar structure holds that drift to a fraction. That difference is not academic when a laser interferometer is chasing sub-micron repeatability across a factory floor. Choosing a low-expansion alloy, a polymer granite casting, or a well-aged ceramic is often the cheapest error correction available.

Stiffness matters just as much, but in a less obvious way. A material that is merely strong can still resonate under stage acceleration, turning a fast move into a brief ringing that the encoder never fully sees. Dense, damped composites and stress-relieved cast iron absorb those micro-vibrations before they become measurement noise. Similarly, magnetic permeability can quietly bend a probe's field if the base plate has not been specified carefully. These material choices rarely appear on a spec sheet as accuracy claims, yet they set the floor for everything the calibration report promises.

In practice, the influence is easiest to spot after a rebuild. Replace a hollow aluminum bridge with a granite or polymer composite of the same geometry, and the morning-to-afternoon drift can shrink by half. The improvement does not come from a better sensor or finer scale; it comes from giving those components a quieter mechanical reference. That is why experienced metrologists inspect the casting, the joints, and the mounting pads before blaming the electronics. The material is not a passive stage—it is part of the measurement loop.

Managing Noise and Drift in Low-Current Leakage Detection

Accurate low-current leakage detection hinges on separating genuine signal from environmental and instrument noise. In practice, the smallest measurable leakage currents often sit below a few nanoamperes, where thermal fluctuations, cable triboelectric effects, and power-line interference become dominant. Instead of chasing unrealistic zero-noise setups, seasoned engineers focus on controlling the measurement loop: guarded traces, short shielded cables, and careful grounding reduce common-mode pickup far more effectively than post-processing tricks. The goal is not to eliminate noise entirely but to make it predictable and stable enough that a true leakage signature stands out clearly.

Drift presents a subtler challenge because it changes slowly over time, mimicking a genuine leakage trend. Ambient temperature swings, humidity absorption on PCB surfaces, and dielectric relaxation in test fixtures can all create baseline wander that fools naive threshold comparisons. A practical approach is to characterize the drift profile under controlled conditions before each measurement session. By recording a no-load baseline for a few minutes and applying a simple linear or exponential correction, you can separate thermally induced movement from an actual insulation breakdown. Some test systems go further, interleaving the device under test with a reference channel to cancel common drift in real time.

The interplay between noise and drift means that single-point readings are rarely trustworthy for sub-microampere work. A better tactic is to sample continuously and look at the statistical behavior: a genuine leakage path tends to produce a consistent offset with low variance, whereas noise is broadband and drift is low-frequency but smooth. Applying a median filter tuned to the expected signal bandwidth cleans up impulsive spikes, while a slow-moving average handles thermal wander. The key is matching the filtering strategy to the physical source of the error rather than relying on generic smoothing, which can hide fast breakdown events or introduce misleading time delays.

Calibration and Verification Without the Guesswork

Calibration often drifts into guesswork when a technician eyeballs a gauge or trusts a spreadsheet that hasn't been updated in months. A cleaner approach starts with hard numbers: record the instrument's raw output at each reference point, subtract the known standard, and treat the difference as a correction curve rather than a vague “it feels right.” This makes the adjustment step mechanical and repeatable.

Instruments don't drift uniformly, so the correction curve usually has a shape—flat in the middle, steep near the ends, or shifting after warm-up. By measuring enough points across the operating range, you can see that shape instead of guessing at a single offset. The residual error after adjustment becomes the real acceptance criterion, not the technician's confidence level.

Verification then becomes a simple pass/fail check. Run reference standards through the calibrated setup, compare each result to its tolerance window, and log the numbers. If every point lands inside the window, you're done. If not, the stored data tells you exactly which range needs another look, so the next round of adjustment is based on evidence, not hunches.

Installing and Retrofitting Without Interrupting Operations

Planning a retrofit around live production demands more than just careful scheduling; it requires a mindset shift. The goal isn't to find a quiet window—it's to make the installation itself invisible to daily workflows. This often means staging equipment in phases, using temporary bypasses, and coordinating with operators who know exactly which minutes are untouchable. A seasoned integrator will map out dependencies and run test loops during off-peak hours without ever pulling the plug on the core process.

One practical approach is to treat the existing system as a living organism. Rather than shutting everything down, technicians install new components in parallel, running them in a shadow mode where they receive real data but don't yet control outputs. Once the new modules prove stable, cutover happens one function at a time—often in seconds—so operators barely notice the switch. For mechanical retrofits, temporary frames, quick-release couplings, and pre-fabricated subassemblies let crews swap out parts during brief pauses or even while the line keeps moving.

The real art lies in predicting which interruption is acceptable. Some teams use vibration monitoring and thermal imaging to confirm that new equipment can be mounted without affecting adjacent machinery. Others pre-wire entire control cabinets offsite, then land connections through pre-cut entry points during a scheduled lunch break. The key is to design the retrofit as a series of non-events: each step small enough to slip between existing tasks, yet robust enough to build toward a fully upgraded system without a single unscheduled stop.

Reading Between the Lines of Transformer Specifications

A transformer datasheet rarely tells the whole story. The kVA rating and voltage ratio are only a starting point; the real behavior shows up in derating curves, impedance percentages, and temperature rise limits measured under specific ambient assumptions. If you skip the footnotes, you might miss that the unit was tested at 40°C ambient or with forced-air cooling that won't exist in your installation.

Efficiency numbers deserve similar skepticism. A 98% efficiency figure often applies only near full load with a unity power factor. In actual operation, transformers cycle through partial loads and distorted waveforms. Those conditions push core and winding losses differently, so a transformer that looks excellent on paper can waste more energy than a lower-rated unit with flatter efficiency across its operating range.

Other details to question include short-circuit withstand ratings, inrush current limits, and insulation class. Manufacturers may use different standards for the same term, making direct comparisons misleading. By reading between the lines—asking for test reports, checking ambient assumptions, and comparing impedance values—you get a clearer picture of how the transformer will perform after installation, not just during a lab test.

FAQ

Conclusion

When leakage currents hover in the milliamp range, the choice of split-core residual current transformer stops being a catalog afterthought and starts dictating measurement credibility. The right unit pairs a carefully selected core material—often high-permeability nanocrystalline or permalloy—with consistent gap geometry, because even a slight misalignment after clamping changes the magnetic path enough to corrupt low-end linearity. That quiet influence of the core shows up as drift or noise long before it appears in a spec sheet, so field performance depends on how well the transformer rejects common-mode disturbances and thermal shifts. Calibration isn't a one-time sticker; it's a process of verifying ratio and phase error under actual burden and cable positioning, which is the only way to remove guesswork from the data. Retrofitting these sensors into live panels, without dropping power or rewiring, adds another layer of practical constraint: the split design must close repeatably around existing conductors and stay put in vibration, dust, and tight spaces.

Reading between the lines of transformer specifications matters more than picking the smallest or cheapest model. A low rated primary current or a narrow linearity window can look impressive until you see the fine print on phase angle, temperature coefficient, or immunity to adjacent current-carrying conductors. In precision leakage detection, the transformer's internal shielding and winding symmetry often matter more than the headline accuracy class. The best split-core RCTs earn their place by maintaining stable output at 1 mA and 10 mA alike, without drifting after repeated open-close cycles or shifting when the conductor isn't perfectly centered. That combination of tolerant installation, honest specs, and verifiable low-current response is what separates instruments that merely detect residual current from ones you can trust for trending, protection, and compliance decisions.
